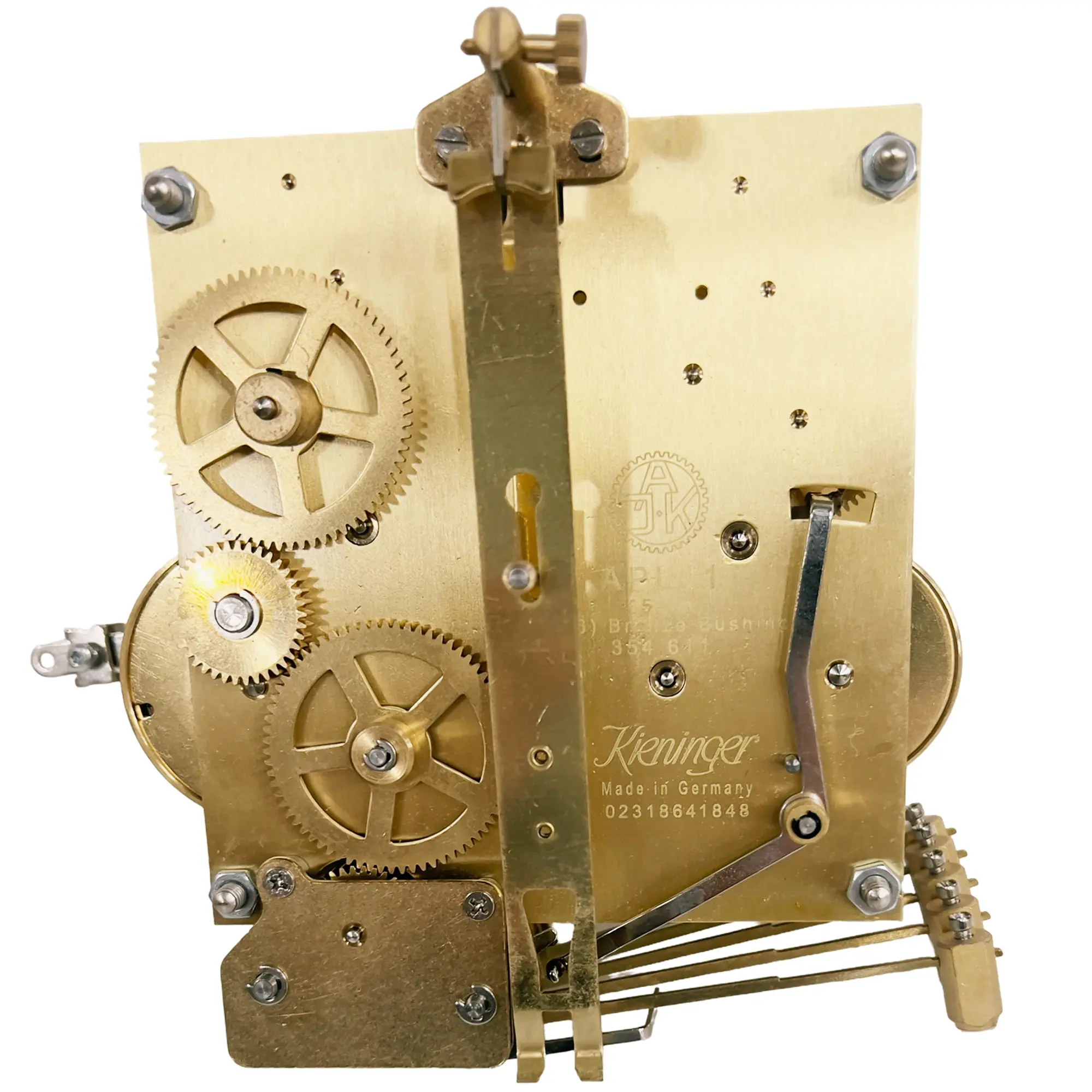

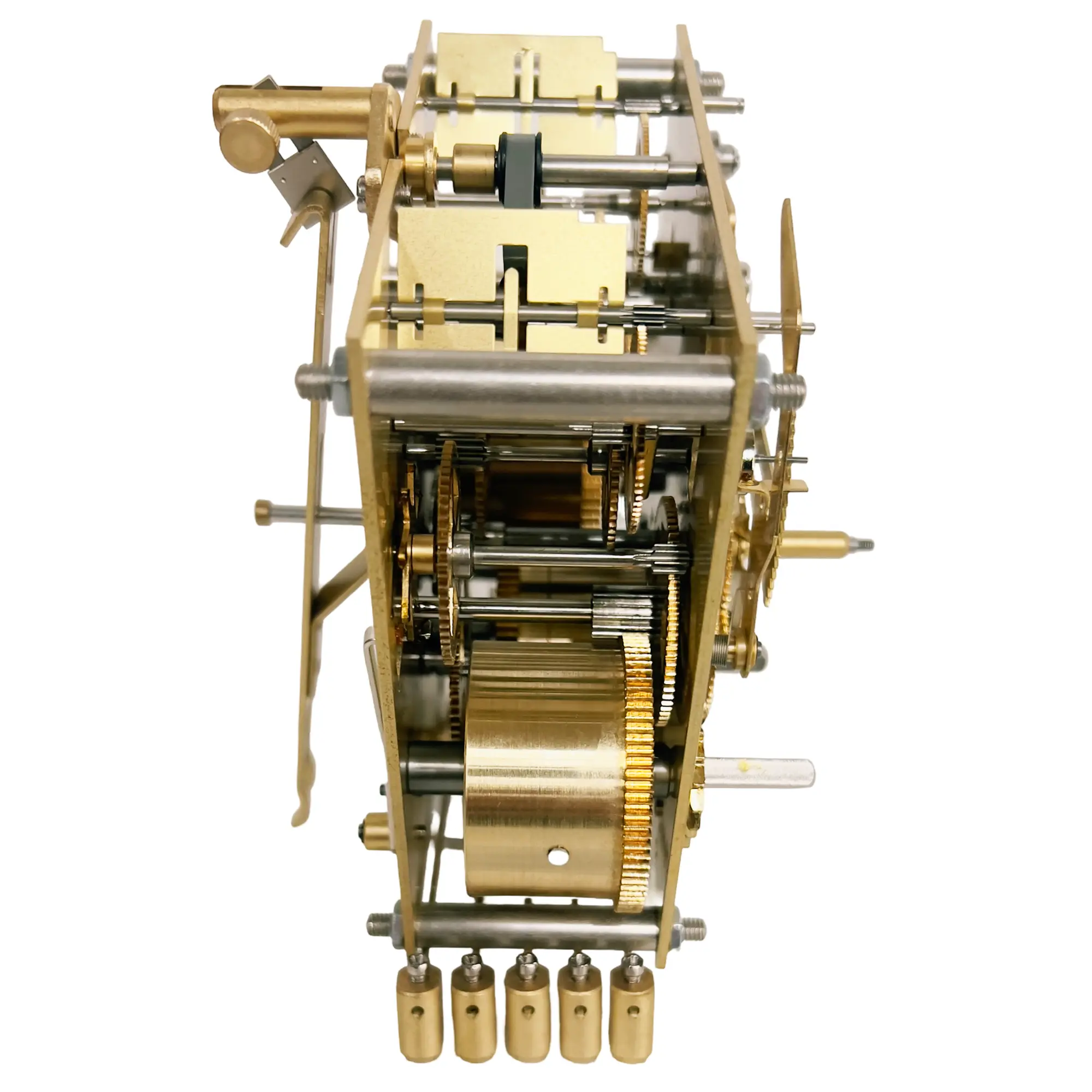

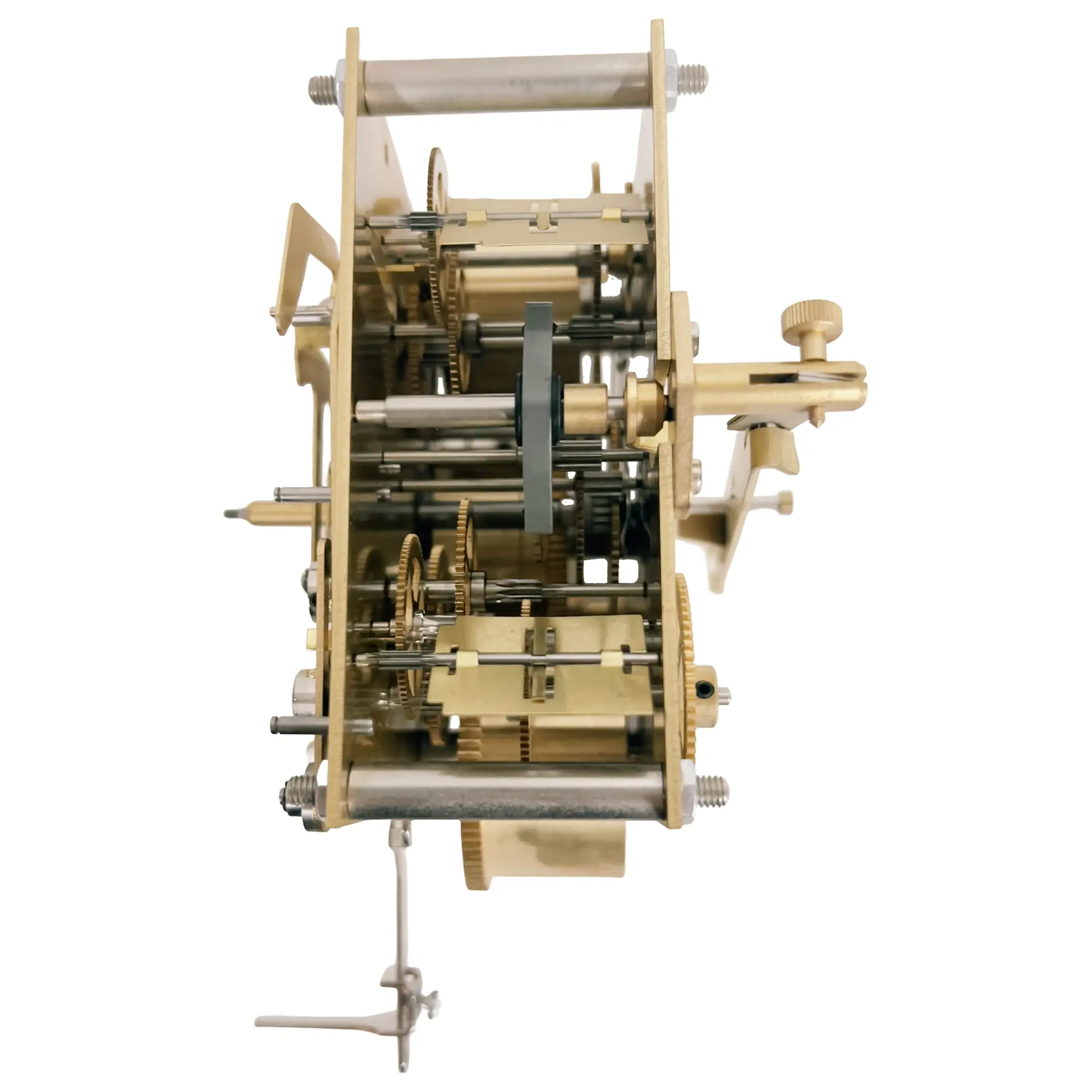

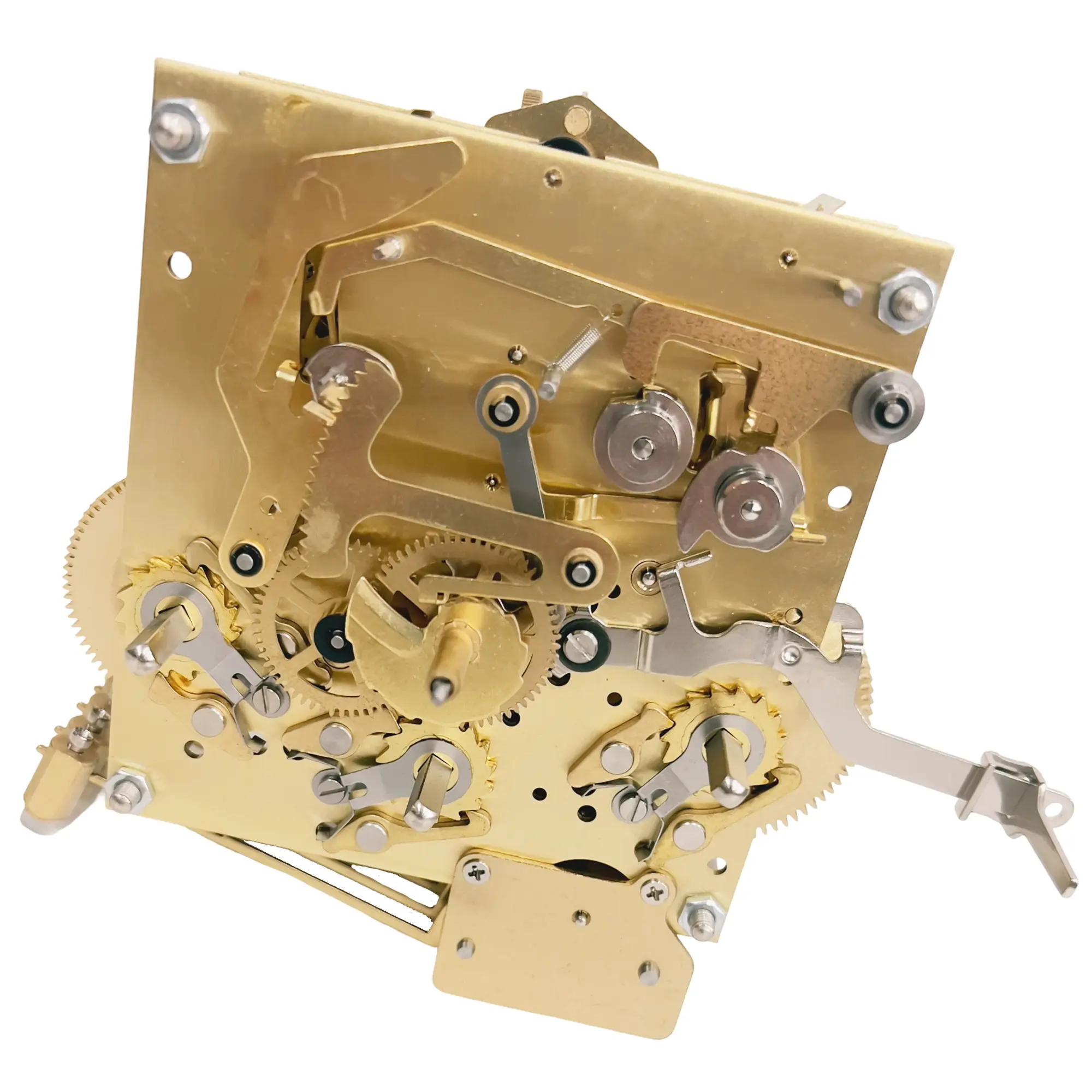

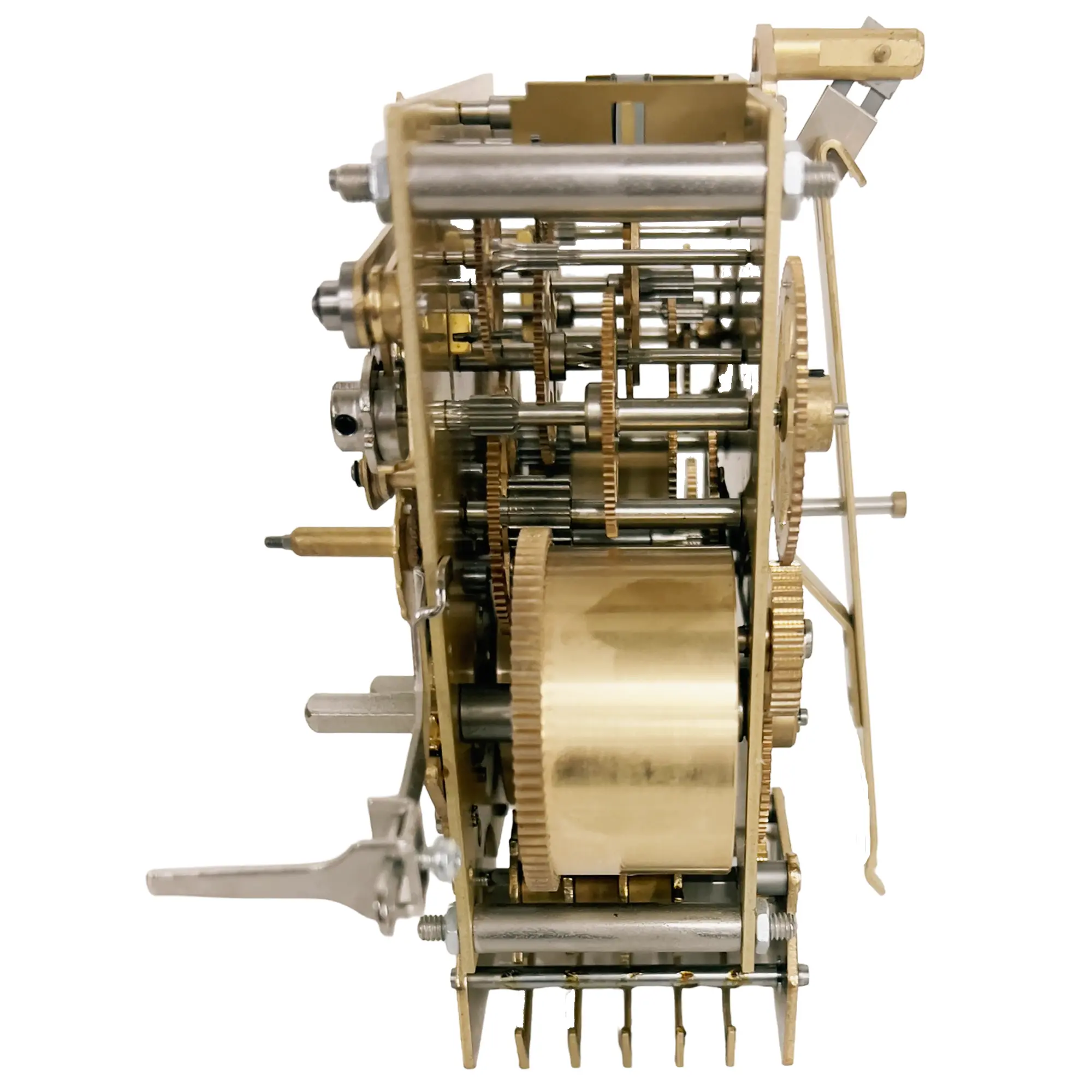

Key Wound Movement | Kieninger APL11 | 65 cm | 354611

German-made Kieninger APL11 mechanical movement. Precision 8-day, spring-driven unit with 1/4-hour Westminster chime on a 5-rod gong.



  • Movement Type: 8-day spring-driven mechanical movement

  • Pendulum Length: 65 cm

  • Escapement: Graham anchor escapement (pendulum controlled)

  • Chime: 4/4 Westminster chime on 5-rod gong (rear mounted / underbeater configuration)

  • Hammer Configuration: 5 rear-mounted hammers

    Bushings: Six (6) bronze bushings

  • Features: Front winding; automatic night shut-off; safety winding lock; heavy brass plates

  • Center Shaft Length: Approx. 31.8 mm (plate to hand nut thread)

  • Plate Size: Approx. 100 × 104 mm

  • Plate Thickness: Approx. 1.7 mm per plate

  • Pair with: Howard Miller chime block: part # 357096

German-made Kieninger APL11 mechanical movement. Precision 8-day, spring-driven unit with 1/4-hour Westminster chime on a 5-rod gong.



  • Movement Type: 8-day spring-driven mechanical movement

  • Pendulum Length: 65 cm

  • Escapement: Graham anchor escapement (pendulum controlled)

  • Chime: 4/4 Westminster chime on 5-rod gong (rear mounted / underbeater configuration)

  • Hammer Configuration: 5 rear-mounted hammers

    Bushings: Six (6) bronze bushings

  • Features: Front winding; automatic night shut-off; safety winding lock; heavy brass plates

  • Center Shaft Length: Approx. 31.8 mm (plate to hand nut thread)

  • Plate Size: Approx. 100 × 104 mm

  • Plate Thickness: Approx. 1.7 mm per plate

  • Pair with: Howard Miller chime block: part # 357096

$77.10

Original: $257.00

-70%
Key Wound Movement | Kieninger APL11 | 65 cm | 354611—

$257.00

$77.10

Description

German-made Kieninger APL11 mechanical movement. Precision 8-day, spring-driven unit with 1/4-hour Westminster chime on a 5-rod gong.



  • Movement Type: 8-day spring-driven mechanical movement

  • Pendulum Length: 65 cm

  • Escapement: Graham anchor escapement (pendulum controlled)

  • Chime: 4/4 Westminster chime on 5-rod gong (rear mounted / underbeater configuration)

  • Hammer Configuration: 5 rear-mounted hammers

    Bushings: Six (6) bronze bushings

  • Features: Front winding; automatic night shut-off; safety winding lock; heavy brass plates

  • Center Shaft Length: Approx. 31.8 mm (plate to hand nut thread)

  • Plate Size: Approx. 100 × 104 mm

  • Plate Thickness: Approx. 1.7 mm per plate

  • Pair with: Howard Miller chime block: part # 357096
